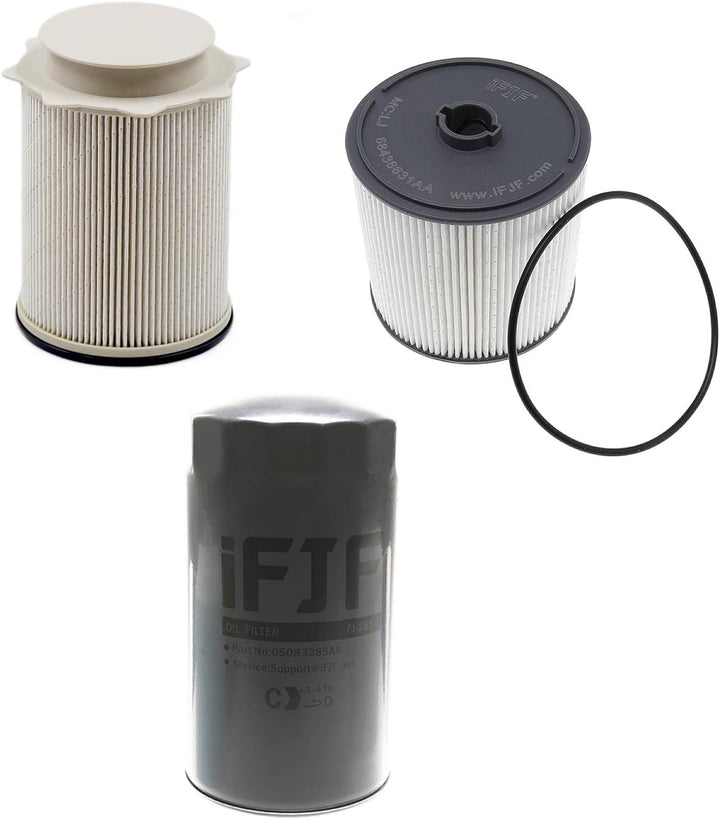

68436631AA Fuel + 5083285AA Oil Filter Kit — Complete 2019-2020 Ram Cummins Maintenance
Keep your 2019-2020 Ram 2500/3500/4500/5500 running at peak performance with this essential two-filter combo. The 68436631AA fuel filter and 5083285AA oil filter are the two most critical maintenance items for your 6.7L Cummins Turbo Diesel — bundled together in one convenient kit at a price well below dealership markups.
Compatibility
| Year |
Make |
Model |
Engine |
| 2019-2020 |
Ram |
2500, 3500, 4500, 5500 |
6.7L Cummins Turbo Diesel |
Key Features
-
Two Filters, One Kit: Everything you need for your next scheduled service — no hunting for individual part numbers or paying separate shipping.
-

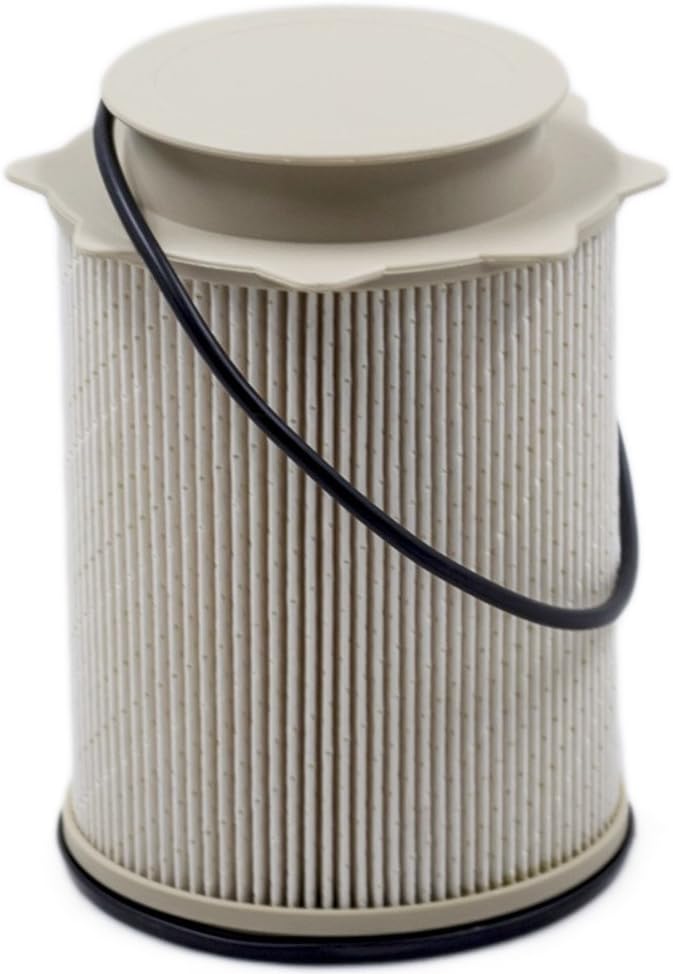

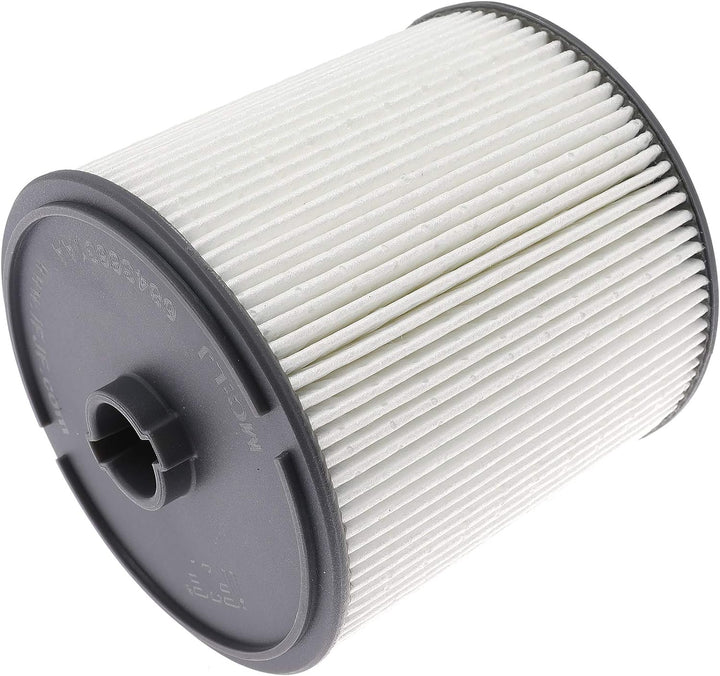

68436631AA Fuel Filter: 5-micron cartridge with fresh O-ring seals. Engine-mounted front filter — the primary defense for your high-pressure common-rail injection system against water and particle contamination.
-
5083285AA Oil Filter: Full-flow spin-on filter with anti-drainback valve. Prevents dry starts by maintaining oil in the filter during engine-off periods. Replaces 5016547AA and 5093092AA.
-
OEM-Spec Quality: Both filters meet or exceed Mopar/Cummins factory specifications for filtration efficiency, flow rate, and burst pressure.
-
Dealership Alternative: Same protection and fitment as the Mopar-branded filters at a significantly lower price point.
Technical Specifications
| Component |
Part Number |
Cross-Reference |
Type |
Rating |
| Fuel Filter |
68436631AA |
68157291AA |
Cartridge (engine-mounted) |
5 Micron Absolute |
| Oil Filter |
5083285AA |
5016547AA, 5093092AA |
Spin-On |
Full-Flow |
Installation Guide

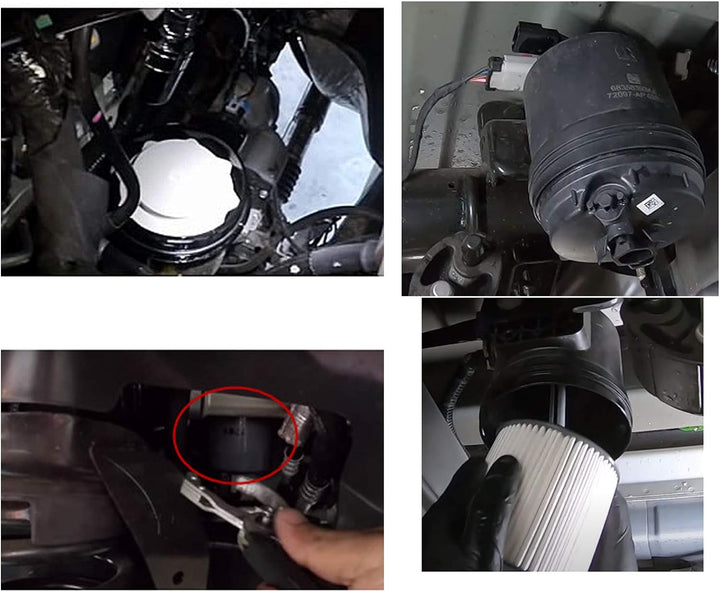

Fuel Filter (68436631AA)
- Locate the engine-mounted fuel filter housing on the driver side of the engine bay.
- Drain water from the housing using the drain valve before opening.
- Unscrew the housing cap (use proper filter wrench — do not use pliers).
- Remove old cartridge and O-rings. Clean housing interior.
- Install new O-rings (lubricate with clean diesel fuel), insert new 68436631AA cartridge.
- Tighten cap to specification. Prime system by cycling key ON 3-4 times.
Oil Filter (5083285AA)
- Drain engine oil. Remove old spin-on filter.
- Clean mounting surface. Apply thin film of clean oil to the new filter's gasket.
- Spin on the 5083285AA by hand until gasket contacts, then 3/4 turn additional.
- Refill engine with correct oil (Cummins recommends 5W-40 synthetic for 6.7L).
- Start engine, check for leaks, verify oil pressure within 10 seconds.
FAQ
Q: Does this kit fit the 2019-2020 Ram 2500?
A: Yes. This kit is an exact fit for all 2019-2020 Ram 2500, 3500, 4500, and 5500 with the 6.7L Cummins Turbo Diesel engine.
Q: Is the 68436631AA the front or rear fuel filter?
A: This is the engine-mounted front filter (under the hood). The rear water separator (chassis-mounted near the fuel tank) is a separate filter. Many Ram owners replace both fuel filters simultaneously for complete protection.
Q: How often should these be replaced?
A: Fuel filter: every 15,000 miles or 12 months. Oil filter: with every oil change (typically 7,500-15,000 miles depending on driving conditions). Severe service (towing, dusty conditions, frequent short trips): reduce both intervals by 50%.
Q: Will these fit aftermarket aluminum filter housings?
A: Yes. Both filters are dimensionally identical to the OEM parts and fit aftermarket aluminum housings designed to replace the factory plastic housings. Perfect for owners who have upgraded to billet or aluminum filter assemblies.
Why Choose iFJF?
-
Bundle and Save: Buying both filters together saves time, shipping costs, and money versus purchasing individually.
-
Tested Quality: Every filter batch undergoes micron-efficiency and burst-pressure testing to meet or exceed Cummins/Mopar specifications.
-
US Warehouse Stock: Ships from US facilities with fast, reliable delivery — typically 3-5 business days.
-
Expert Support: Our team understands Cummins fuel and oil systems. Email support@ifjf.net with fitment questions.
